Project Update

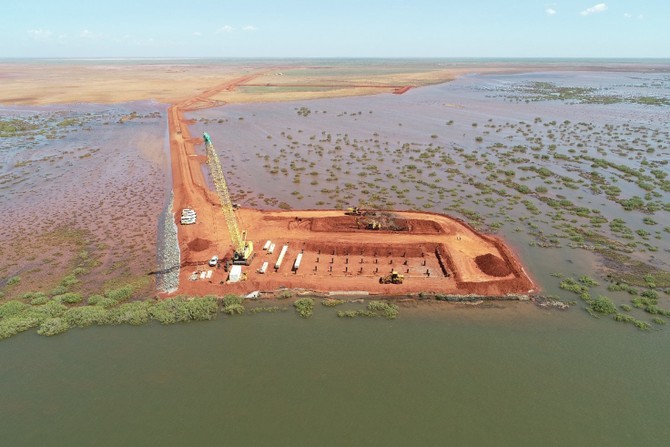

Geomarine’s piling works for the new Primary Seawater Intake Structure at BCI Minerals’ Mardie Salt and Potash Project is now complete.

The structure will support 6 seawater intake pumps, delivering 160 gigalitres of seawater annually to the salt-and-potash producing operation, which will be the largest of its kind in Australia.

The team proposed an alternative design that focussed on constructability whilst incorporating locally sourced piles through Gordon Adams Pipe Sales which helped to expedite the construction of the facility.

Roam Marine provided temporary works designs with the piling gate system able to be mounted to excavators utilised for the earthworks activities. In addition to supporting local suppliers, timely delivery of seawater to the network of ponds for evaporation and crystallisation – to commence first production in time – are key drivers of this project.

To read more about this project and other marine infrastructure works we are delivering, Check Our Projects
#geomarine #drivinginnovation #localprocurement #designandconstruct #marineconstruction #potash

Geomarine BCI Minerals GORDON ADAMS Mark Hannaford

Scope of Work

The scope of work for the project includes:

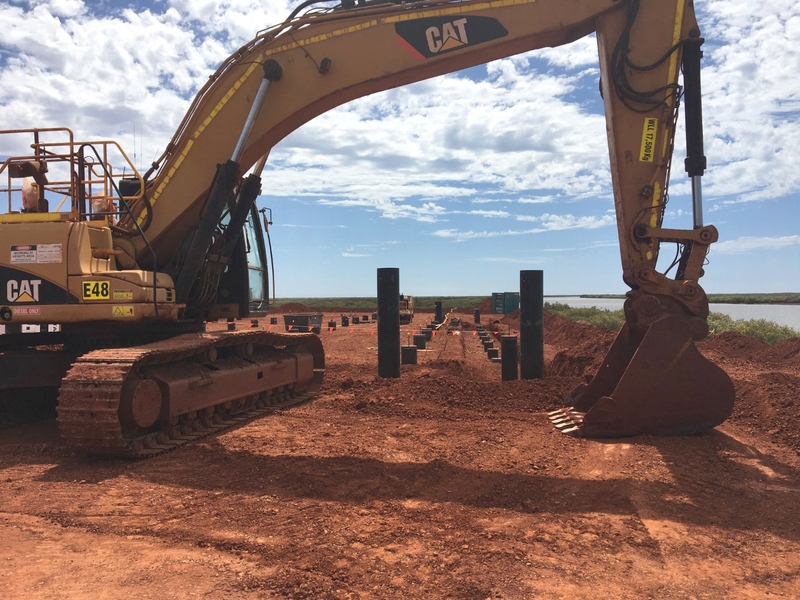

  • Bulk earthworks including construction of pad, excavation of intake and rock armouring

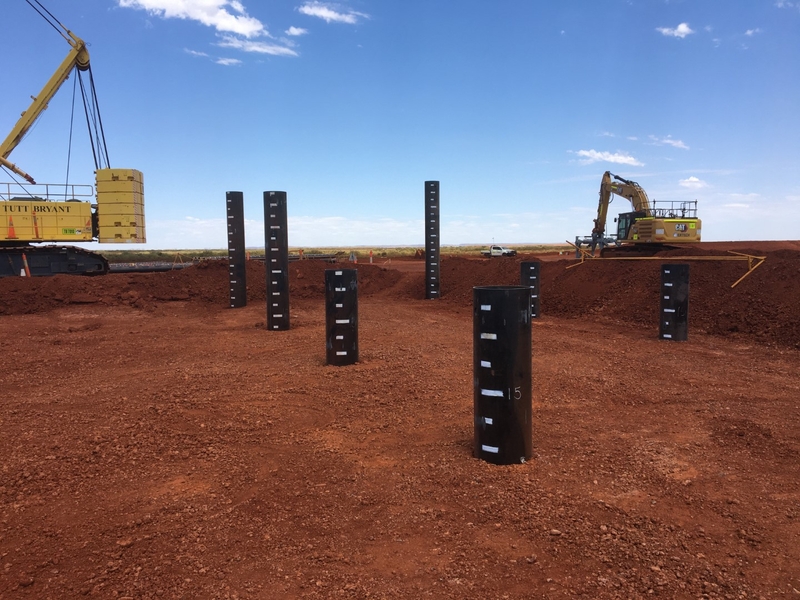

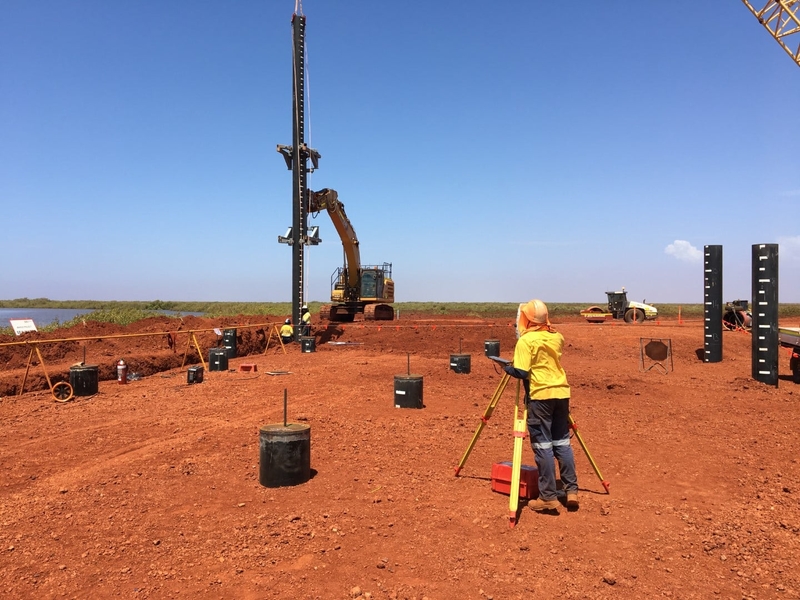

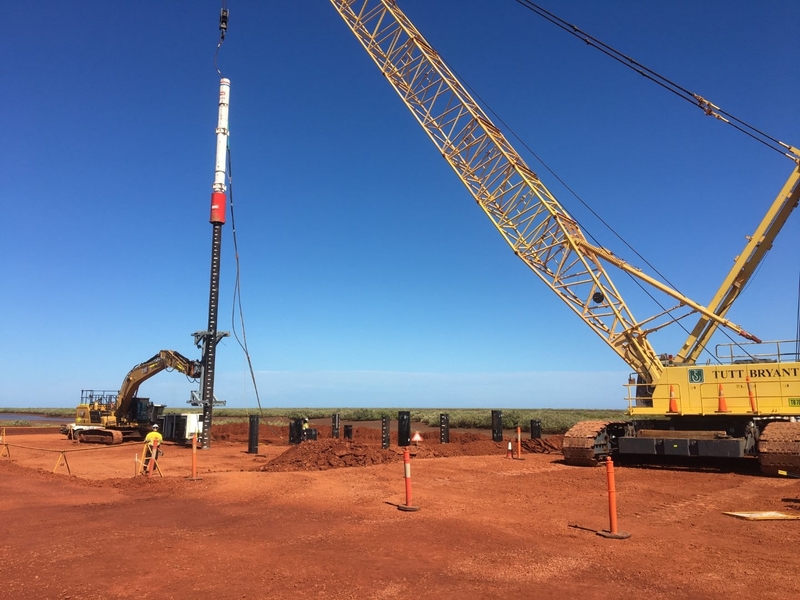

  • Piling work involving the installation of tubular piles to support the pump deck
  • Precast concrete deck structure
  • Stainless steel inlet trash screen
  • Supply and installation of HDPE pipes and precast concrete seawater dissipator pits
  • Installation of free-issued seawater pumps
  • Supply and installation of 2.4MW diesel power station and associated fuel storage
  • Supply and installation of MCC room
  • Supply and installation of all associated ancillary equipment including davit crane
  • Installation and commissioning of 6 Seawater Intake Pumps with vendor attendance
  • Management of all Subcontractors in performance of the Work
